Learn more about Sinotruk insulated boom aerial work platforms truck

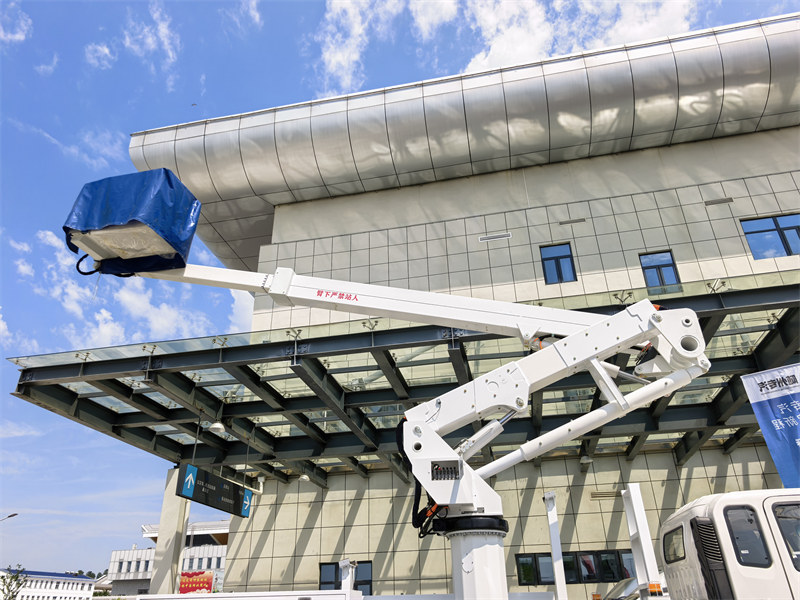

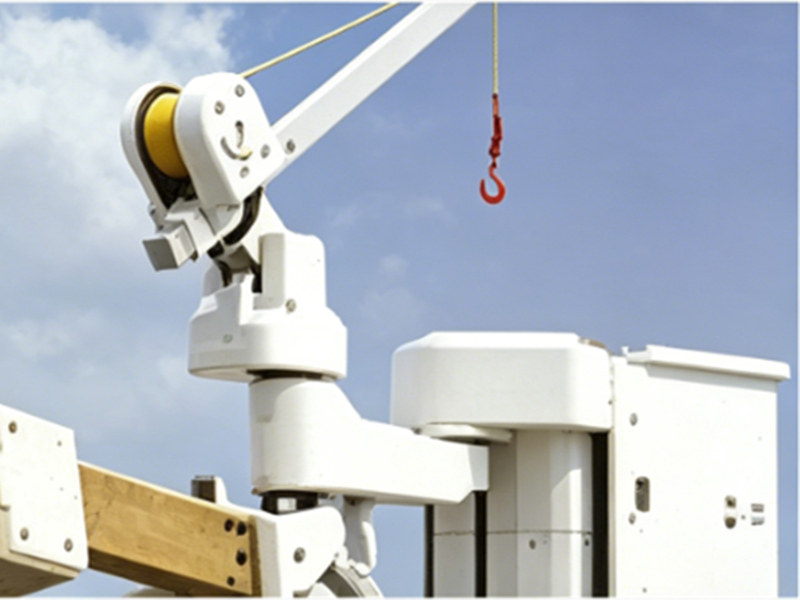

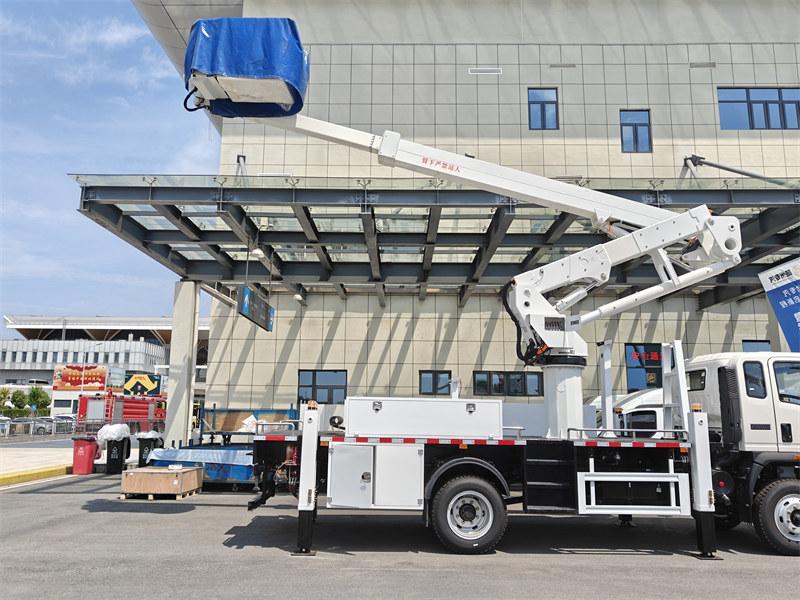

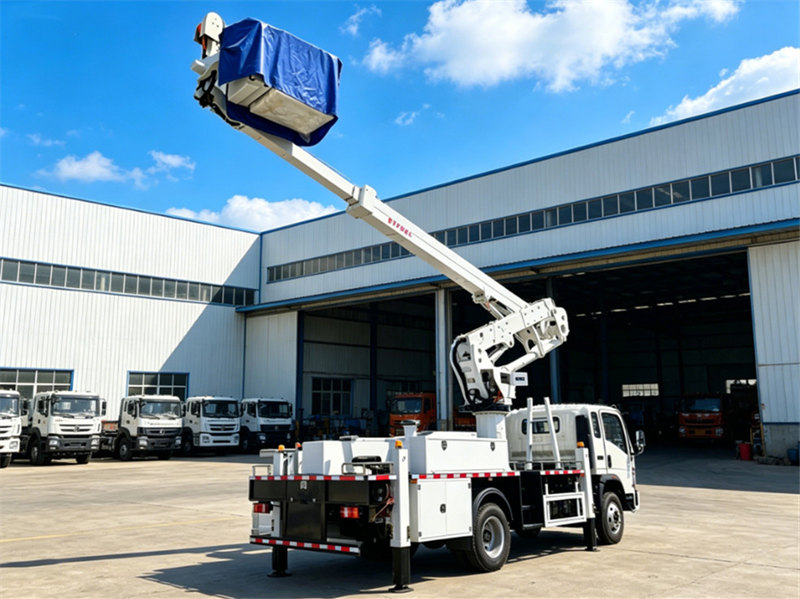

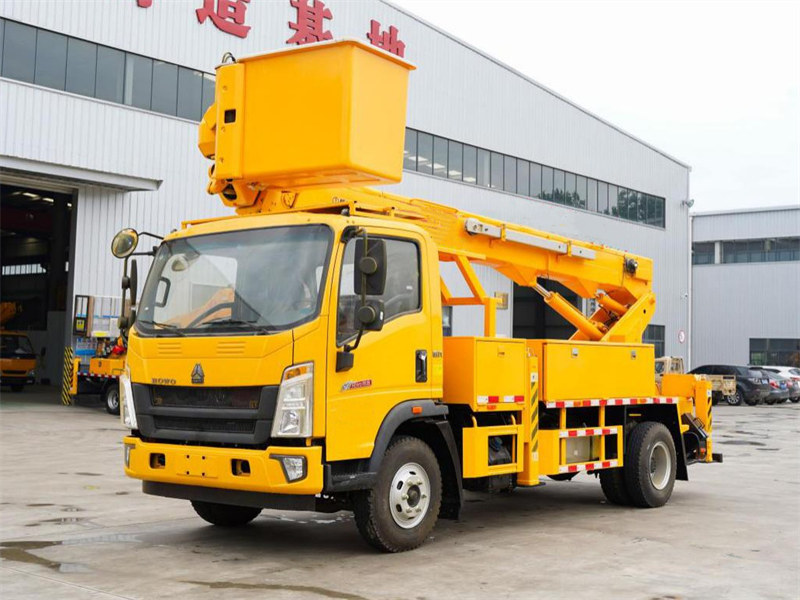

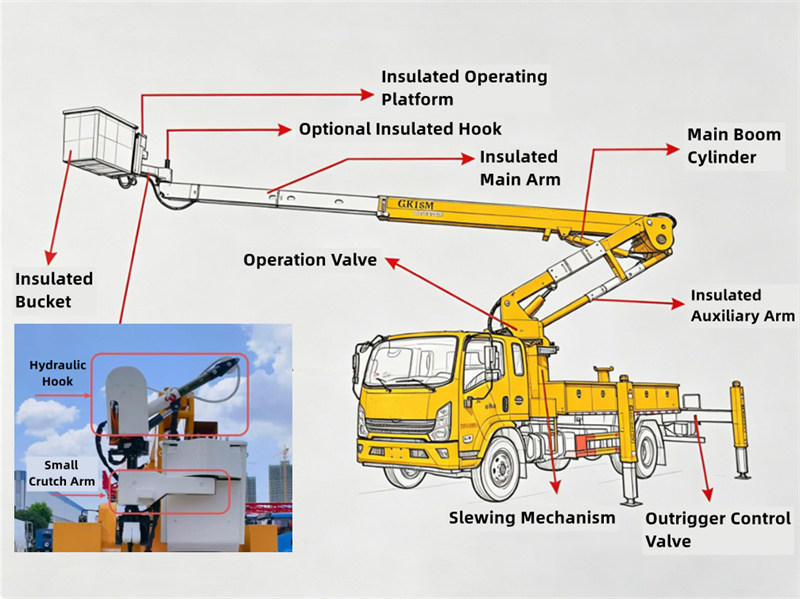

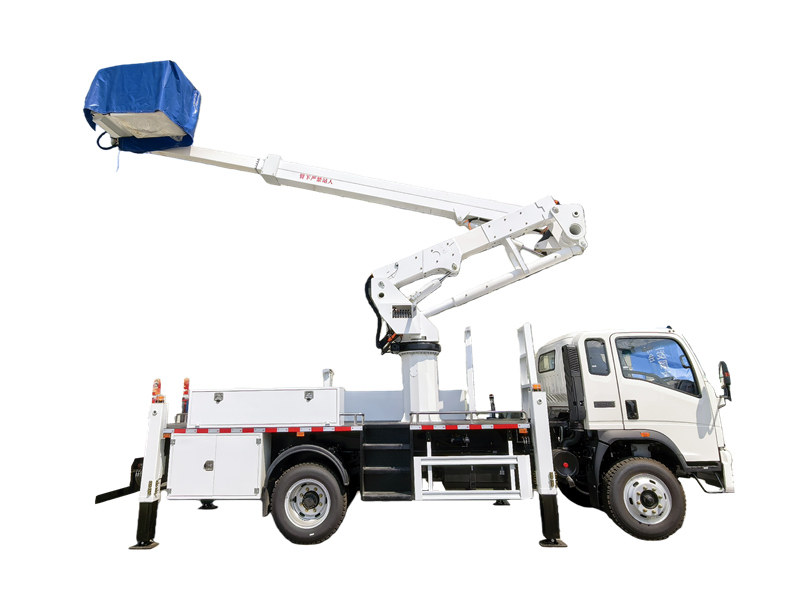

The HOWO 18m insulated boom aerial work platform adopts full FRP insulated third boom with 105kV withstand voltage, supporting 360° full rotation and 490kg auxiliary lifting capacity. It works perfectly for 35KV overhead line maintenance, equipped with independent 4-stage stretch outriggers and a large swing work bucket to boost on-site efficiency. Built with durable commercial chassis and 3-person seating design, this insulated aerial truck balances safety, load capacity and cross-terrain stability.

♦ Simple and reliable design:

Oil pipes and electrical wires in the bucket and boom are all located internally, not exposed on the outside. This eliminates concerns about pipelines being snagged or damaged by external wires, branches, in cluttered working environments, thus protecting vehicle performance and even personal safety.

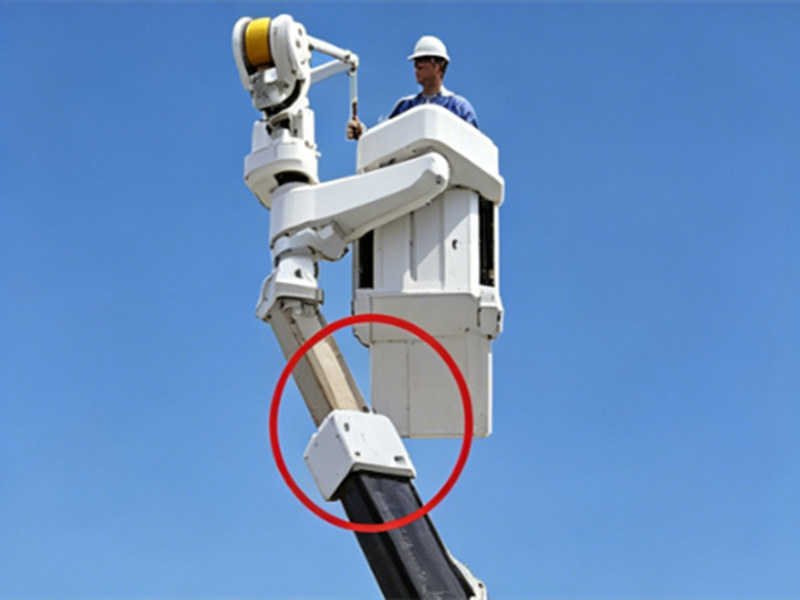

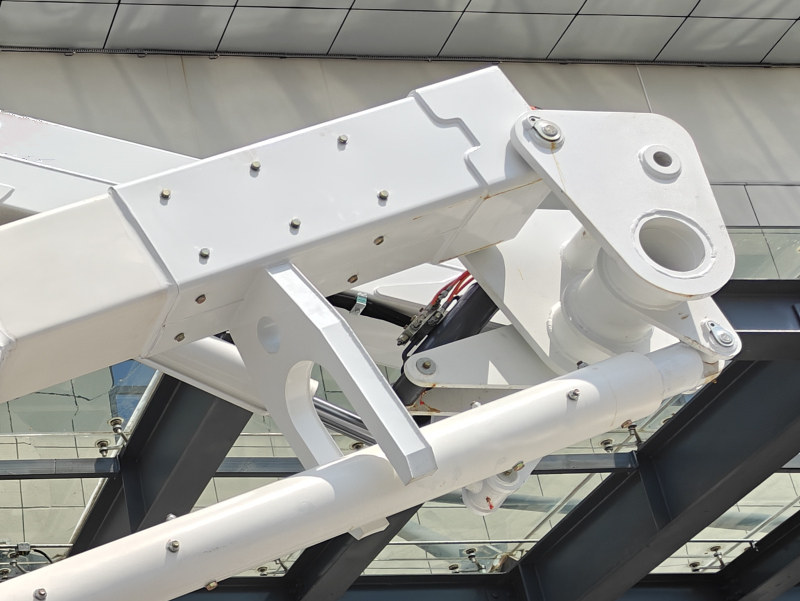

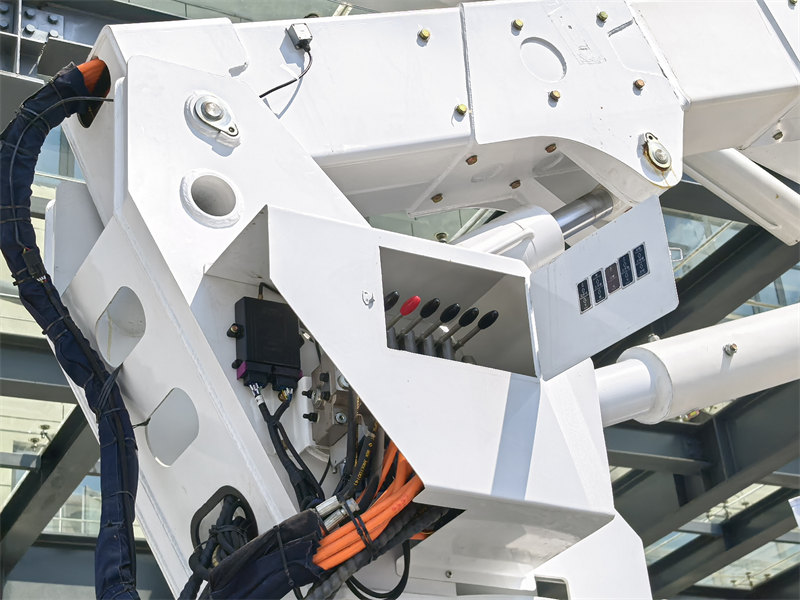

♦ Multi-joint boom:

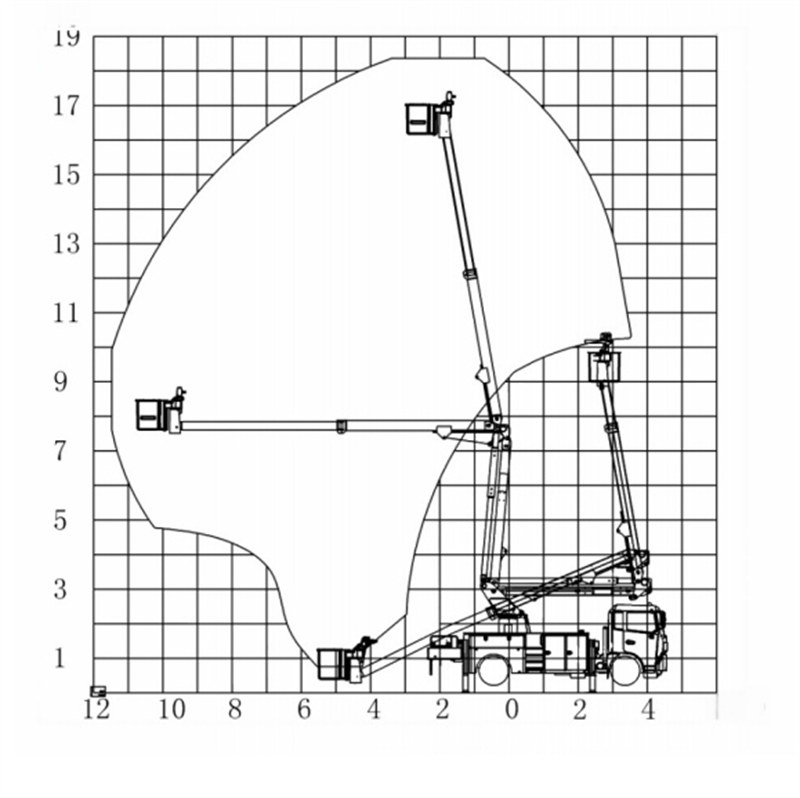

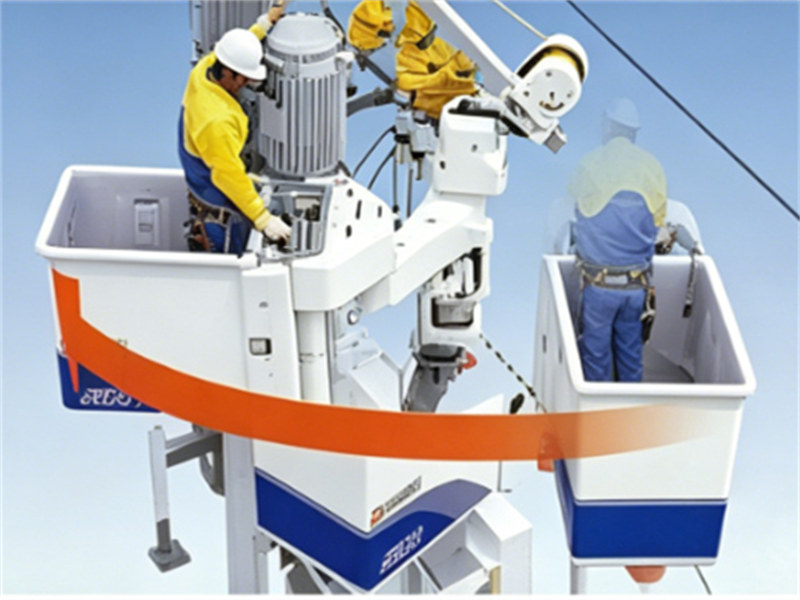

An 850mm long boom, a 2500mm turning radius, and a 500mm bucket lifting range significantly increase the working range, making it convenient to operate around utility poles and streetlights.

♦ Insulation Performance:

Features a 1m effective insulation pre-extension section, ensuring operator safety by preventing them from being unable to work due to insufficient insulation extension length.

The insulated arm utilizes a wet-winding process with glass fiber, resulting in high strength and enhanced insulation performance.

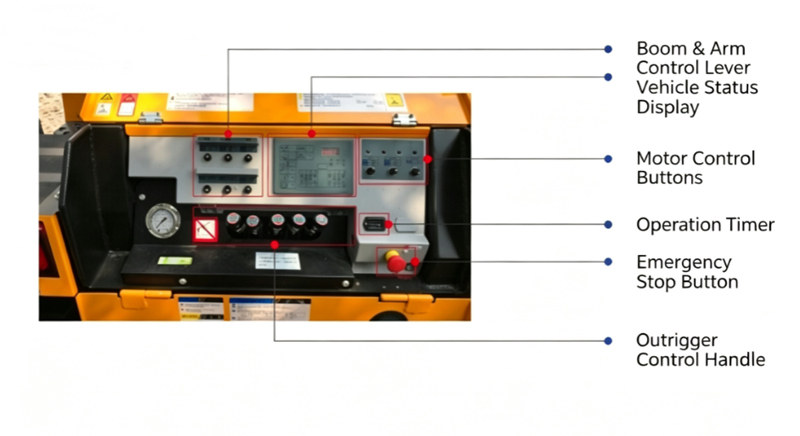

♦ Smart Operating System:

Utilizes a 3D multi-functional handle: Controls upper arm raising/lowering, upper arm extension/retraction, turntable rotation, and other movements, easily achieving omnidirectional movement of the work platform.

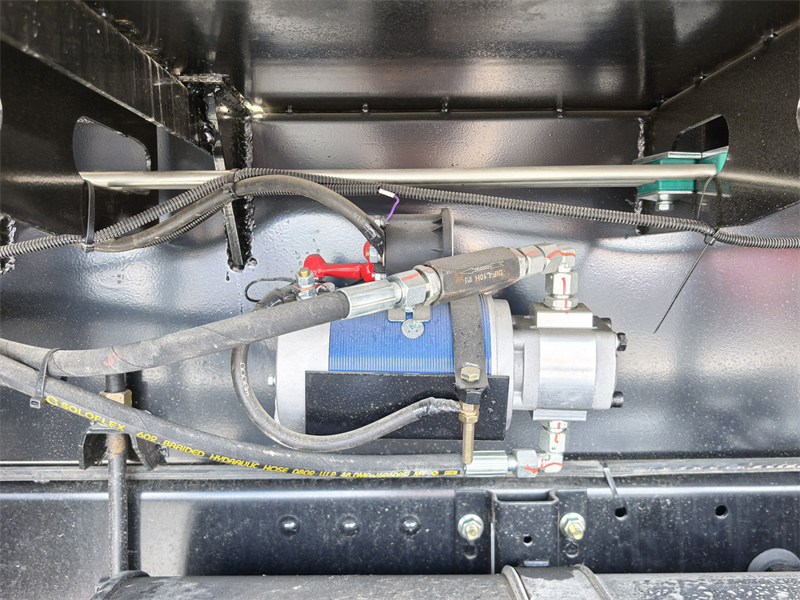

The fully hydraulic multi-way manual proportional valve is simple to operate, easy to control, and has excellent speed regulation performance. It enables electro-hydraulic proportional speed regulation of various movements during operation, ensuring smooth, shock-free, and vibration-free action.

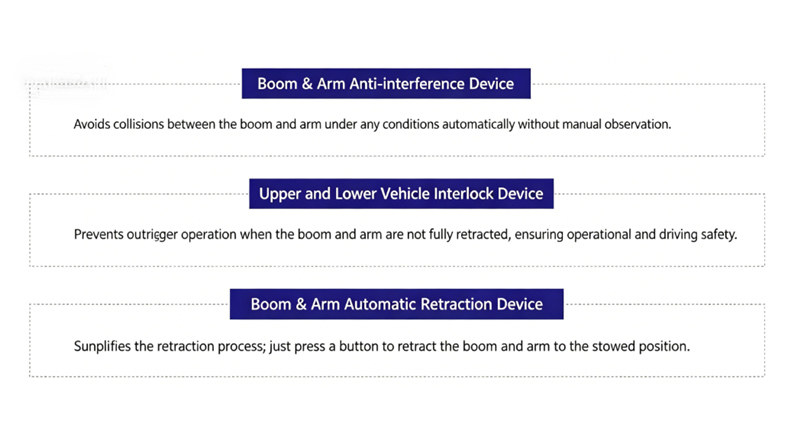

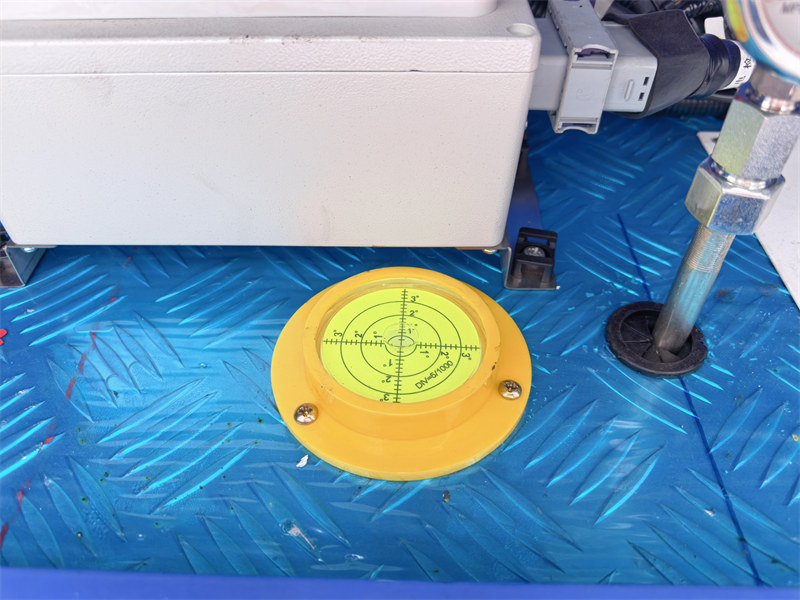

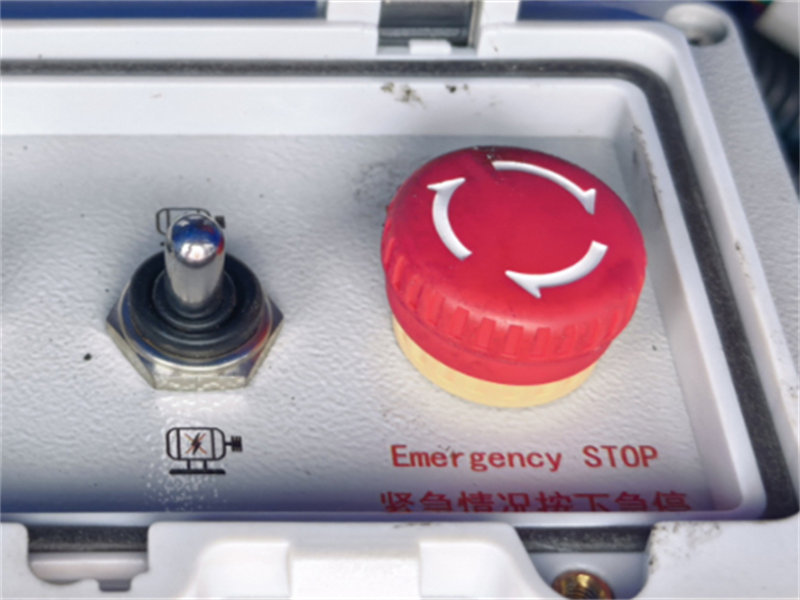

♦ Safety device:
