Name: HOWO Rear Loader waste collection vehicle
Availability: InStock

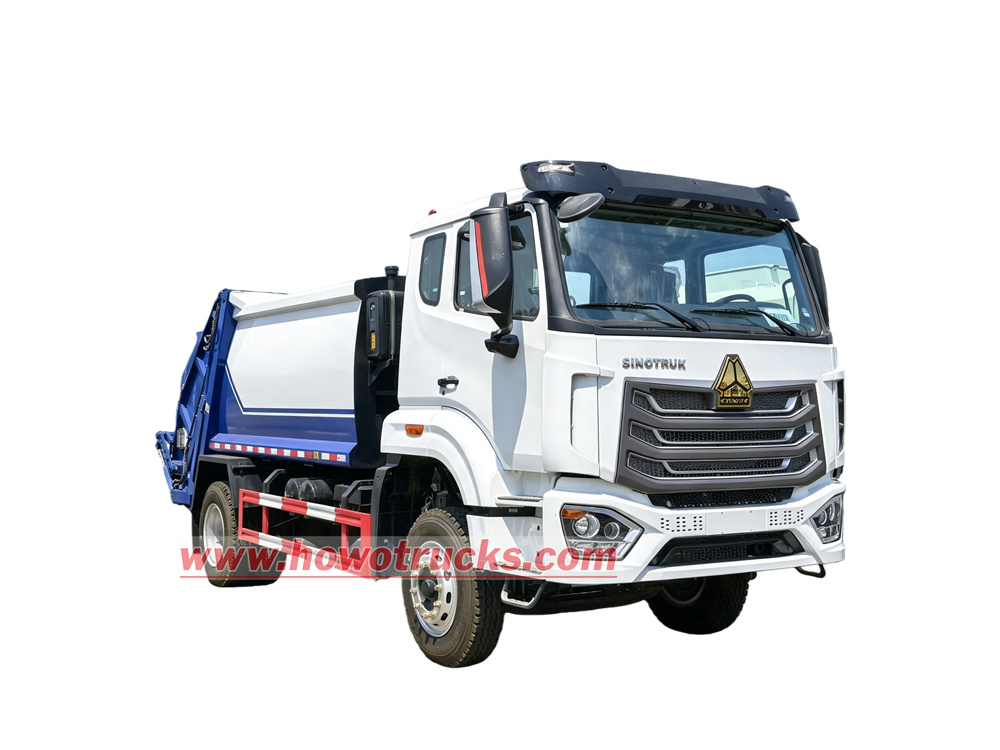

HOWO Rear Loader waste collection vehicle

The Howo NX 4x2 garbage compactor truck features a 4500mm wheelbase, a WP7.300E51 engine, an HW11708STC 8-speed transmission, a 14 cubic meter T420 high-strength steel upper body, a semi-sealed small triangular hopper tipping mechanism at the rear, and utilizes Xiamen Yinhua hydraulic cylinders, Shanghai Qiangtian multi-way valves, and Hefei Changyuan hydraulic pumps. The loading unit's lifting cylinder has a two-way balance valve, and the truck employs a CAN bus electronic control system (with one-button operation and manual operation modes, and electronic throttle). It includes electronic control box, manual hydraulic control valve, and front and rear sewage tanks.

ความสามารถในการทำงาน :

14cbm

ประเภทห้องโดยสาร :

HOWO NX300

ขนาด (มม.) :

9020 X2500X3120

ระบบขับเคลื่อน :

4x2

ระยะฐานล้อ (มม.) :

4500

เครื่องยนต์เฉพาะ :

300HP/WP7.300E51

เกียร์บ็อกซ์ :

HW11708STC 8-shift, Manual

เพลาหน้า (กก.) :

6500

เพลาหลัง (กก.) :

11500

หมายเหตุ :

RHD is optional

หมวดหมู่สินค้า

ผลิตภัณฑ์ใหม่

14cbm HOWO NX Trucks Refuse Compactor

In today's rapidly urbanizing world, the reliability, intelligence, and operational efficiency of waste collection and transportation equipment directly impact the level of urban environmental governance. The Howo NX series 4×2 compactor garbage truck is a professional sanitation vehicle designed to meet this demand, integrating high-efficiency compression, intelligent control, and durability. It is suitable for daily collection and transportation operations on urban main roads, residential areas, and rural garbage transfer stations.

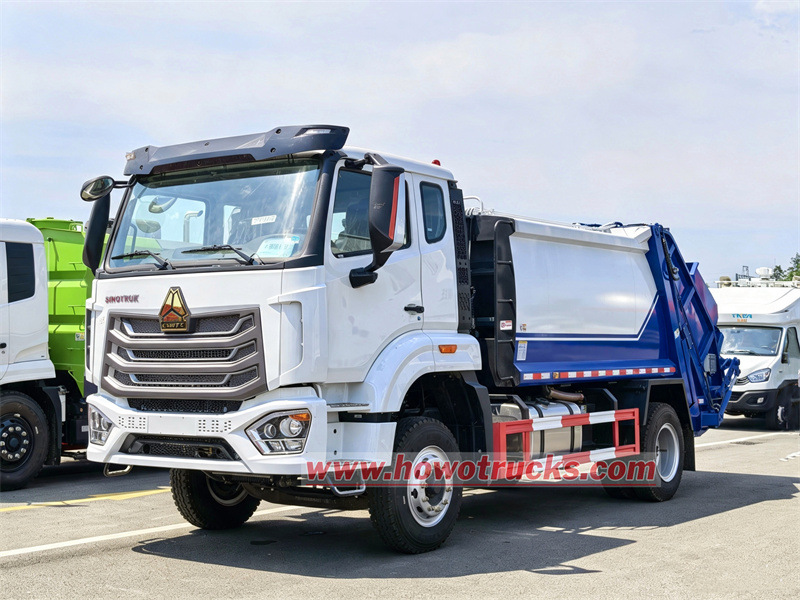

The HOWO Rear Loader waste collection vehicle utilizes the Howo NX 4×2 dedicated sanitation chassis, paired with a 4500mm wheelbase for a balanced and rational layout, perfectly adapting to a 14-cubic-meter large-capacity superstructure. Powered by a WP7.300E51 Euro V engine, it offers ample power reserves, suitable for the frequent start-stop and heavy-load compression operations of garbage trucks.

▶ Product Parameters:

HOWO NX 14CBM rear loader compactor truck
Chassis
Size	9020 X 2500 X 3120 mm
GVW/Curb Weight	18000/10750kg
Wheelbase	4500mm
Cab	SINOTRUK HOWO NX300, Left Hand Drive
Front/Rear Axle	6500 / 11500kg
Tire	11.00R20, 6+1 tires
Engine
Type	Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling
Make/Model	WEICHAI / WP7.300E51
Horse Power（HP)	300 HP/220kW
Max torque	1250N.m
Rated speed	2300rpm
Displacement	7.47L
Emission standard	Euro 5
Transmission
Model	HW11708STC 8-shift, Manual
Garbage Container
Capacity	14 CBM
Material	T420 High-strength steel plate
Design	Sealed leakage proof
Compaction Ratio	≥ 1:3.4
Hopper Volume	2m3
Sewage Tank	200L + 200L
Flip mechanism	Semi-sealed bucket
Feeding mechanism cycle time	≤10s
Loading Cycle Time	≤25s
Unloading cycle time	≤110s
Filler lifting time	≤15s
Discharging system	Horizontal ejection
Control System	CAN bus + motion controller，features both one-button control and manual control modes.
Control System	Front electric control in the cab, rear electric control, and drive side manual control

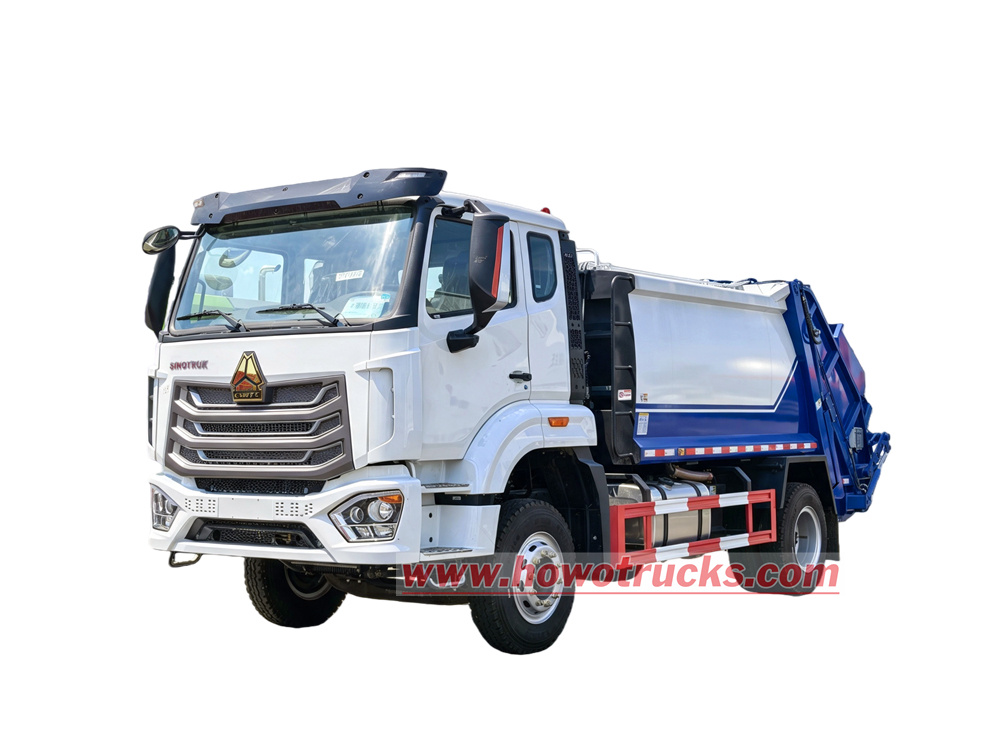

HOWO 14 cbm large rear compaction vehicle

▶ Upper Structure:

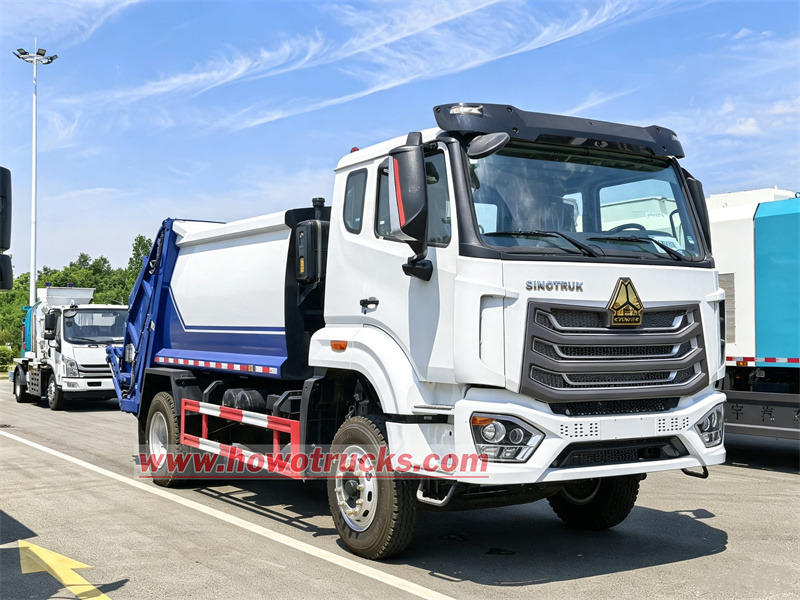

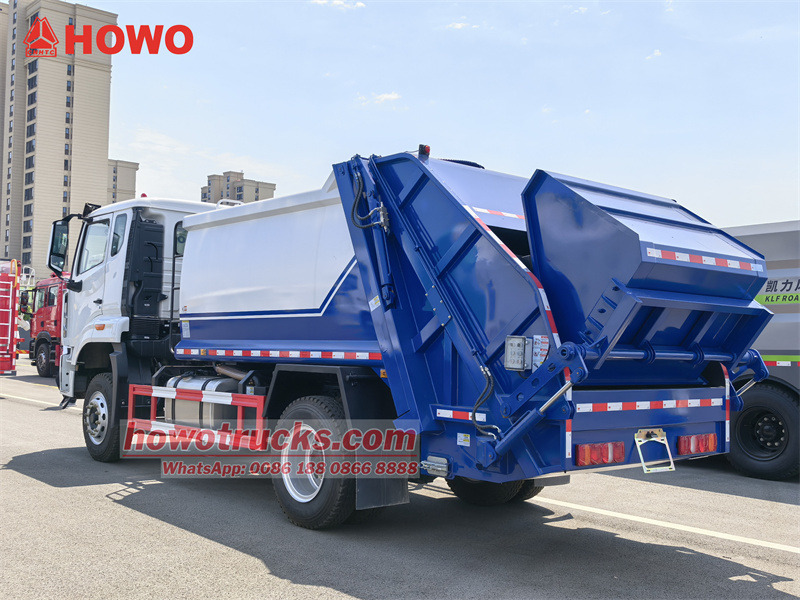

HOWO 4x2 14cbm rear loader compactor truck

• Box Volume: 14 cubic meters. The box body is made of T420 high-strength steel plate, which is high in strength, wear-resistant, and deformation-resistant.

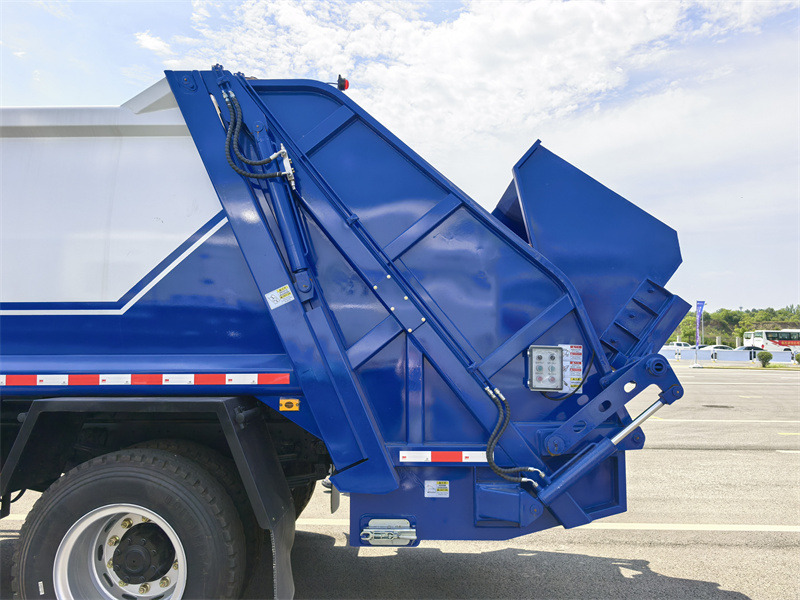

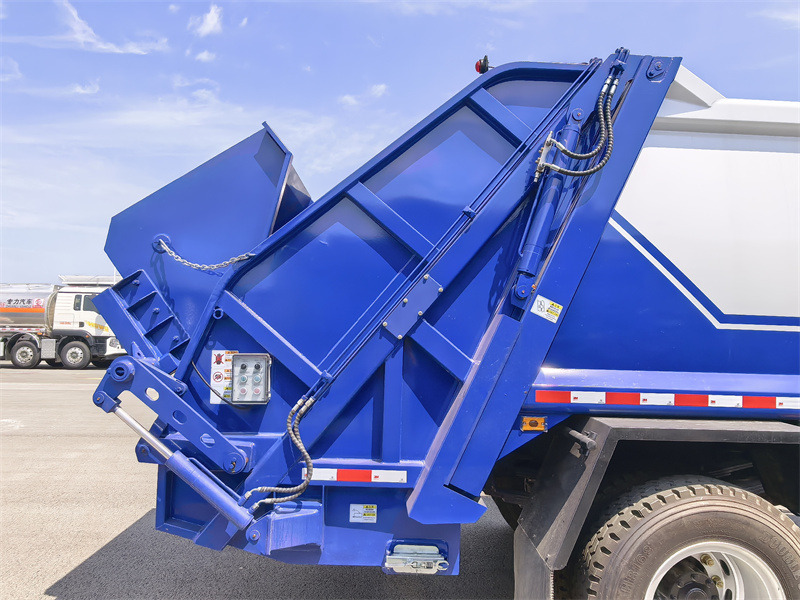

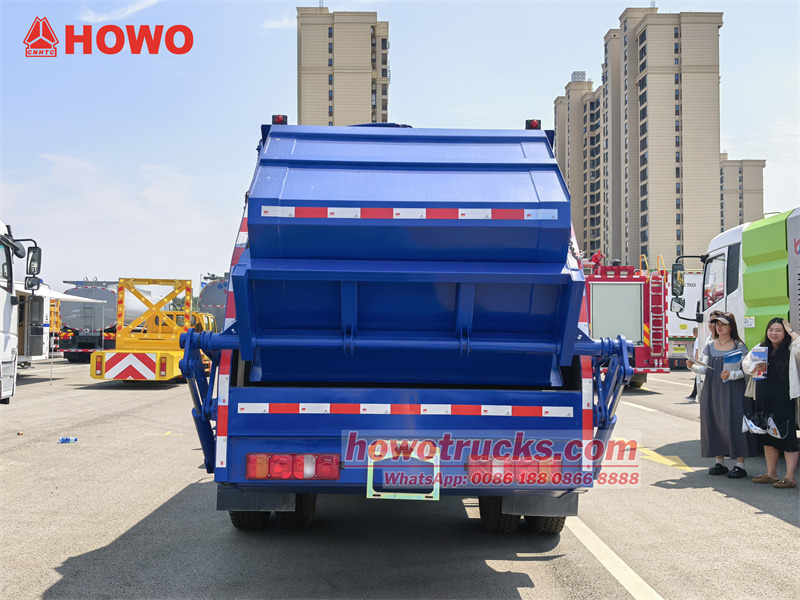

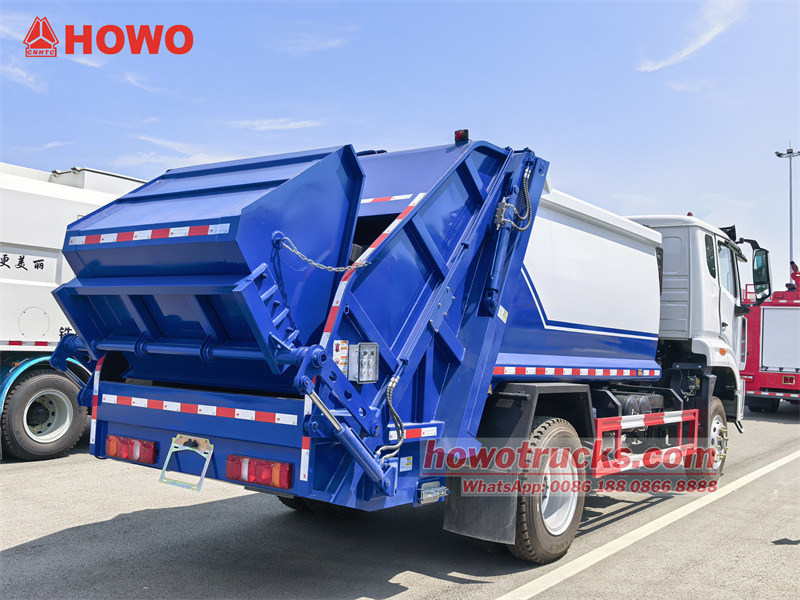

• Rear Design: Semi-sealed small triangular hopper tipping mechanism, suitable for docking and unloading 120L/240L standard garbage bins and small tricycle collection vehicles. The semi-sealed design reduces garbage splashing and scattering during operation.

• Two-way Compression Technology: The waste compression ratio can reach 1:3.4 or higher. Waste is repeatedly scraped into the waste box by the loader scraper, and then pushed forward by the two-way compression of the front pusher plate until the box is full.

▶ Hydraulic System:

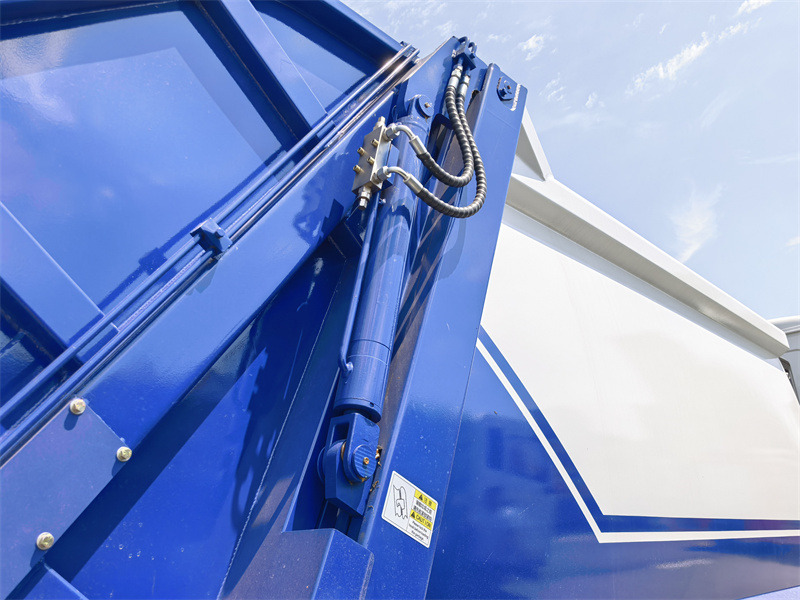

• Cylinders: Utilizes Xiamen Yinhua cylinders, with precision-machined and chrome-plated cylinder bodies. Imported seal materials ensure wear resistance and anti-stretching properties. The loading device lifting cylinder features a two-way balance valve for smooth, safe, and reliable operation.

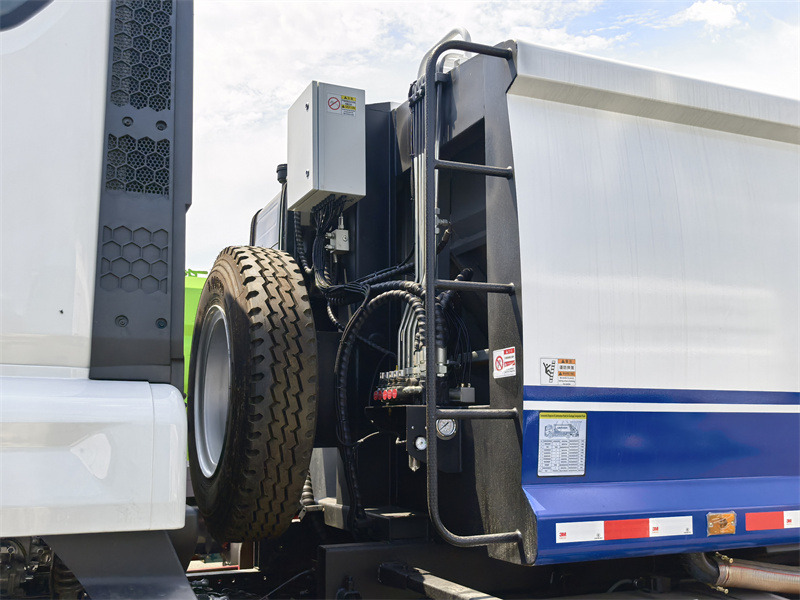

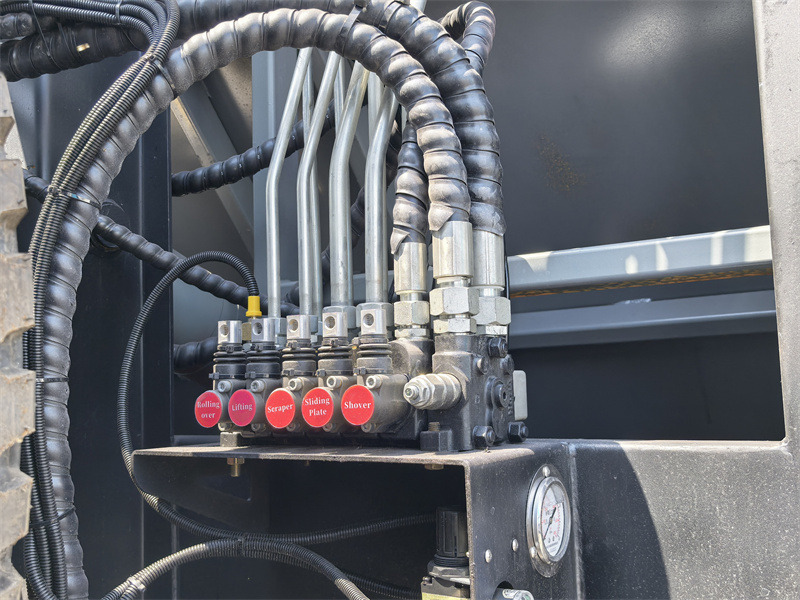

• Control Valve: Equipped with a Shanghai Qiangtian multi-way valve. The valve body integrates overload relief and oil replenishment functions, ensuring precise action and rapid response.

• Power Source: Powered by a Hefei Changyuan hydraulic pump with a reasonable displacement design. The system's rated working pressure is stable at 20MPa, and the compression cycle speed is appropriate.

▶ Operating System:

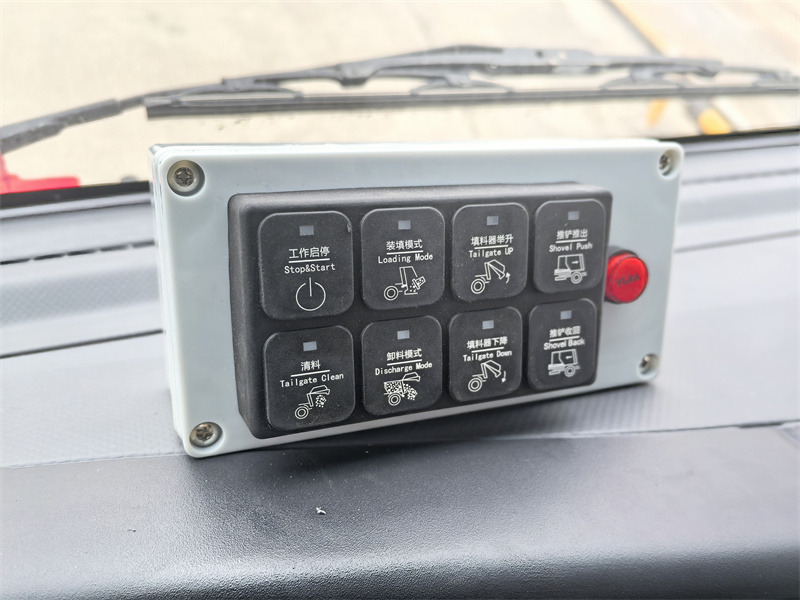

• Equipped with a CAN-BUS based vehicle electronic control architecture, featuring high system integration, simplified wiring harnesses, reduced potential fault points, and support for one-button fully automatic cyclic operation mode.

• Retains a complete manual operation mode, allowing individual control of each mechanism's actions. Single-step adjustments are more convenient during equipment maintenance and material clearing. The system integrates electronic throttle linkage, automatically matching engine speed during operation.

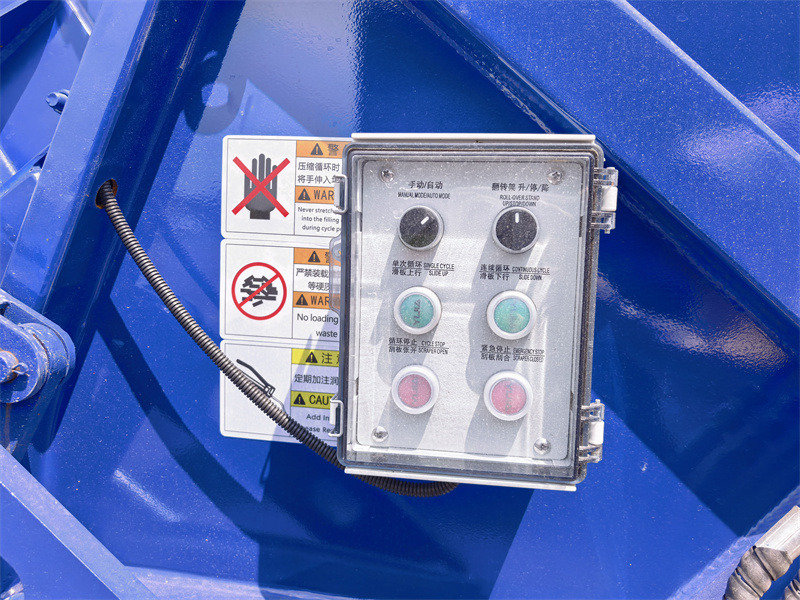

• Operation Points: Three electronic control boxes are located inside the cab and on the left and right sides of the loader.

• Emergency Stop: An emergency stop switch is located on the left side of the loader, and a manual hydraulic control valve is provided on the passenger side, providing dual protection for operational safety.

▶ Environment and maintenance:

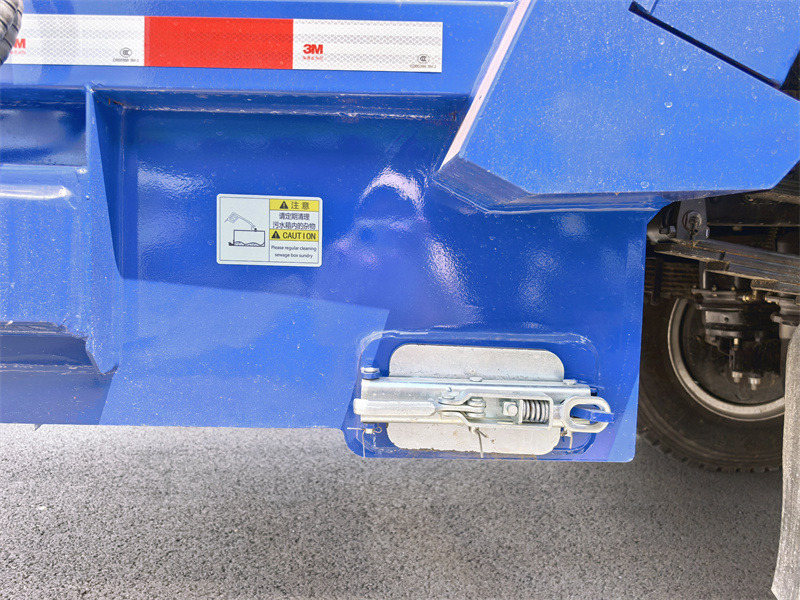

• The vehicle is equipped with front and rear partitioned wastewater collection tanks, ensuring complete enclosed collection of leachate generated during operation. This prevents leakage and road pollution during transport. The wastewater tanks have pre-installed discharge outlets for easy cleaning.

• The tank body and loading device are sealed with sealing strips to prevent leakage.

• The vehicle's maintenance points are rationally laid out, with hydraulic, electrical, and lubrication points exposed and visible. Routine maintenance and inspection are simple, reducing subsequent maintenance time and costs.

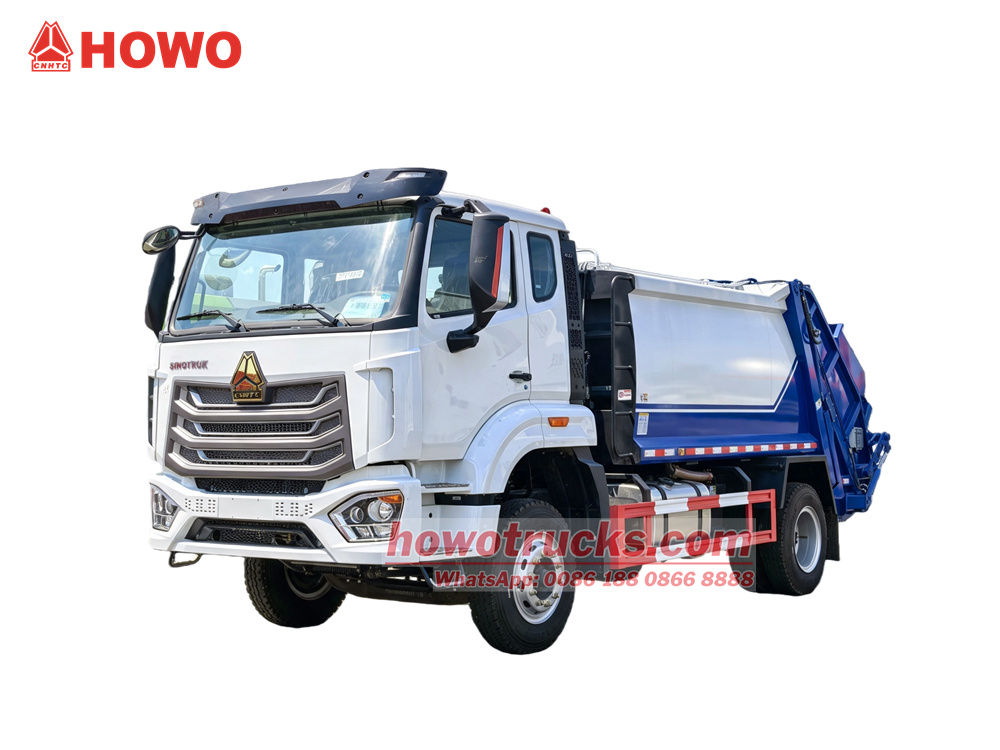

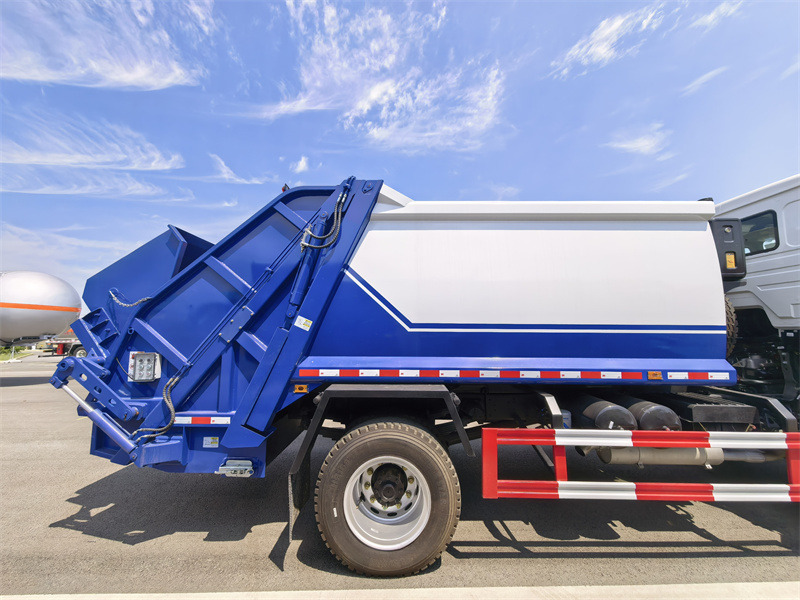

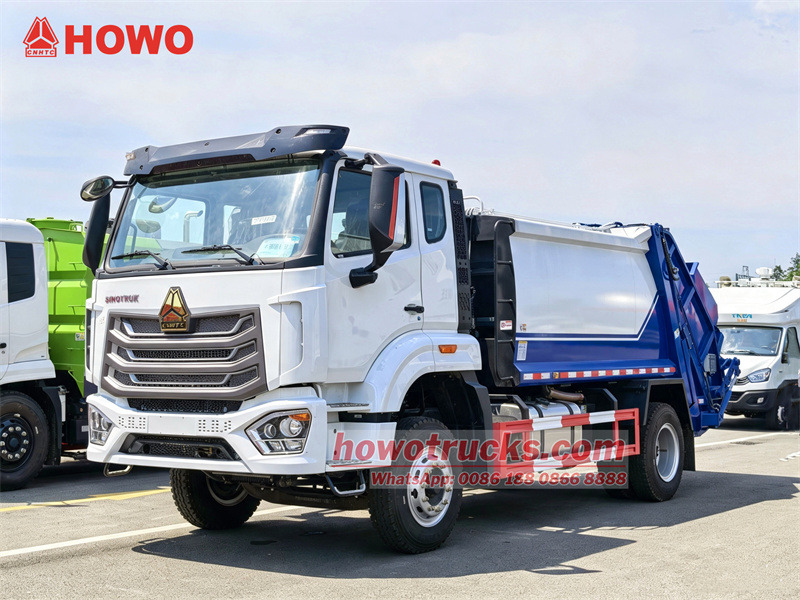

SINOTRUK HOWO 4x2 14m3 Garbage Compactor Truck

◊ Products--100% Customized Level One!

◊ Transportation--100% Safety, Convenience, Efficient!

◊ Services--7days + 24hours Service!

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

ฝากข้อความไว้

HOWO Rear Loader waste collection vehicle

14cbm HOWO NX Trucks Refuse Compactor

HOWO Rear Loader waste collection vehicle

HOWO 14 cbm large rear compaction vehicle

14cbm HOWO NX Trucks Refuse Compactor

HOWO 4x2 14cbm rear loader compactor truck

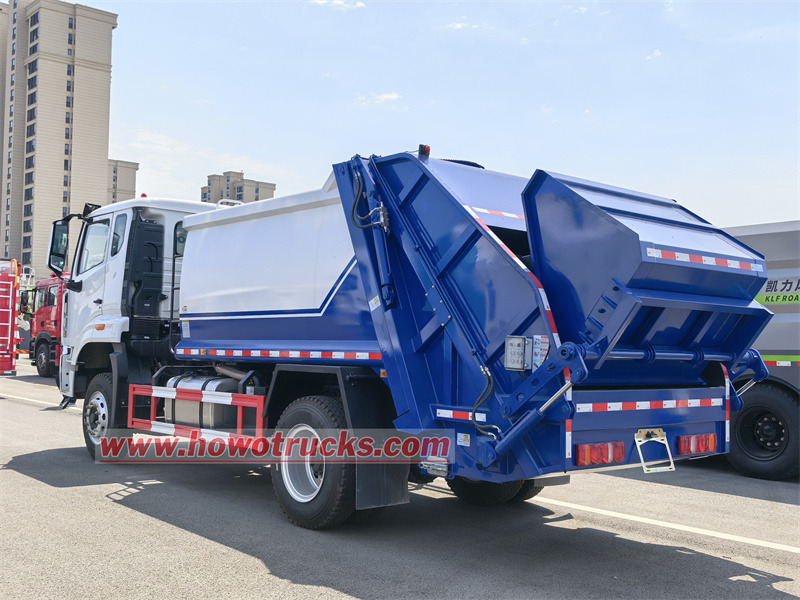

HOWO NX 14CBM garbage disposal truck

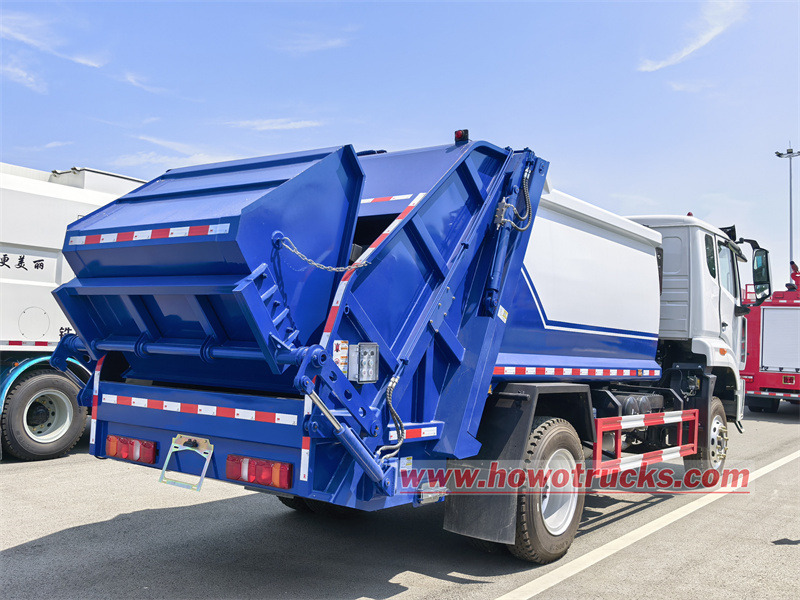

HOWO 14cbm rear lifting garbage truck
