Africa HOWO M7 10ton Freezer Van Truck

The HOWO 10 ton refrigerated truck is a reliable workhorse built for demanding long distance cold chain logistics. Powered by a durable Yuchai 220HP 6 cylinder engine, it delivers consistent, high performance power to handle diverse road conditions and keep your deliveries on schedule.Fitted with the KX 860 refrigeration unit, this freezer van offers intelligent temperature regulation. It automatically adjusts cooling output according to box internal temperature and cargo requirements, achieving precise temperature control. Fast cool down and steady temperature retention keep perishable cargo in ideal condition throughout the whole transit journey.



  • ความสามารถในการทำงาน :

    10 tons
  • ประเภทห้องโดยสาร :

    HOWO M7 cabin
  • ระบบขับเคลื่อน :

    4x2,LHD/RHD
  • ระยะฐานล้อ (มม.) :

    4600
  • เครื่องยนต์เฉพาะ :

    220HP / YC6J220-331
  • เกียร์บ็อกซ์ :

    8JS85TE ,8-speed,manual
  • เพลาหน้า (กก.) :

    7500
  • เพลาหลัง (กก.) :

    13000
ผลิตภัณฑ์ใหม่

The HOWO 10 ton refrigerated truck is a reliable workhorse built for demanding long distance cold chain logistics. Powered by a durable Yuchai 220HP 6 cylinder engine, it delivers consistent, high performance power to handle diverse road conditions and keep your deliveries on schedule.



Fitted with the KX 860 refrigeration unit, this freezer van offers intelligent temperature regulation. It automatically adjusts cooling output according to box internal temperature and cargo requirements, achieving precise temperature control. Fast cool down and steady temperature retention keep perishable cargo in ideal condition throughout the whole transit journey.

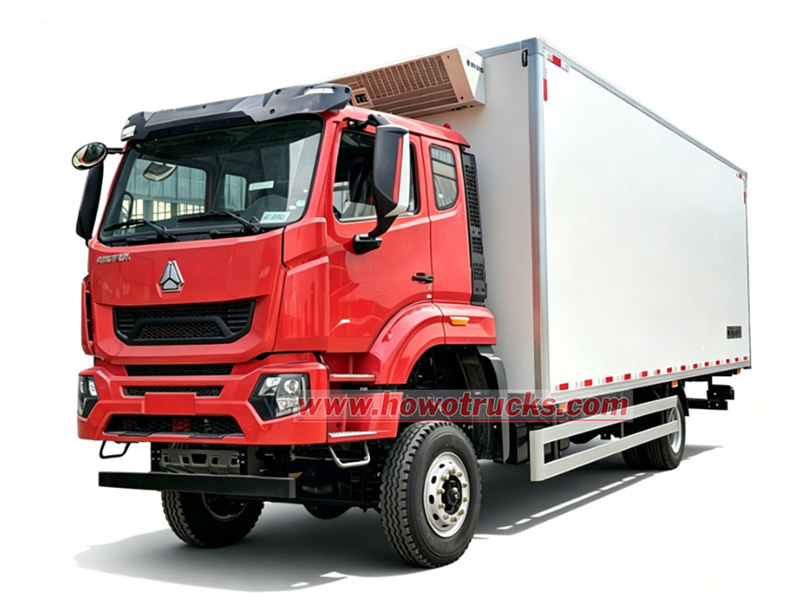

HOWO freezer van truck



*HOWO 4X2 Freezer Van Truck

  Food Cold Chain Transport Truck*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS GROUP LIMITED



Performance Features

🟢 ✓ Built on HOWO M7 4x2 heavy‑duty chassis with 220HP Yuchai engine for stable long‑haul cold‑chain transport.



🟢 ✓ 105mm fully‑closed sandwich FRP‑PU panels deliver excellent thermal insulation for the cargo box.



🟢 ✓ KX‑850 refrigeration unit supports adjustable box temperature ranging from ‑15℃ to +20℃ for diverse cargo.

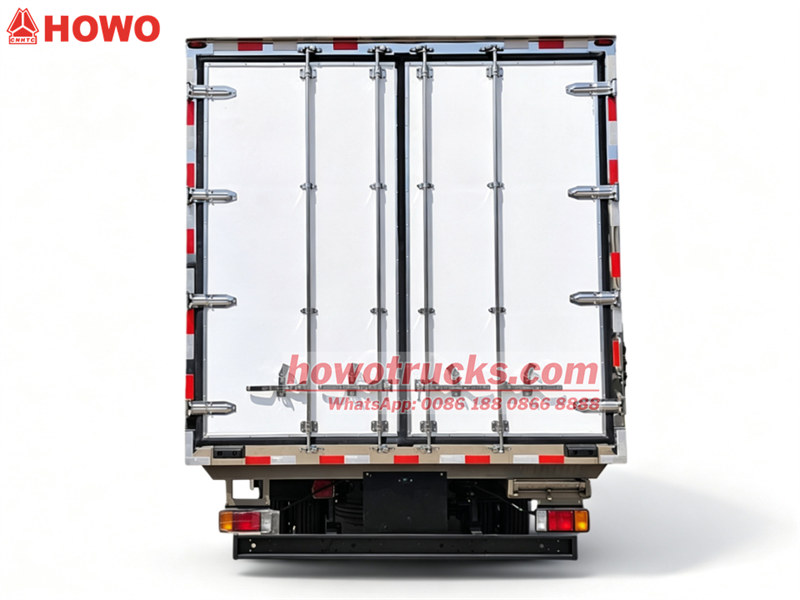

🟢 ✓ Spacious 5300×2450×2500mm insulated body adopts wear‑resistant flooring and full‑size double rear doors.



🟢 ✓ Flexible custom options cover multi‑zone compartments, premium refrigeration brands, camera and hanging systems.



HOWO light freezer van truck



Ⅱ.Parameter for HOWO M7 Freezer Van «««

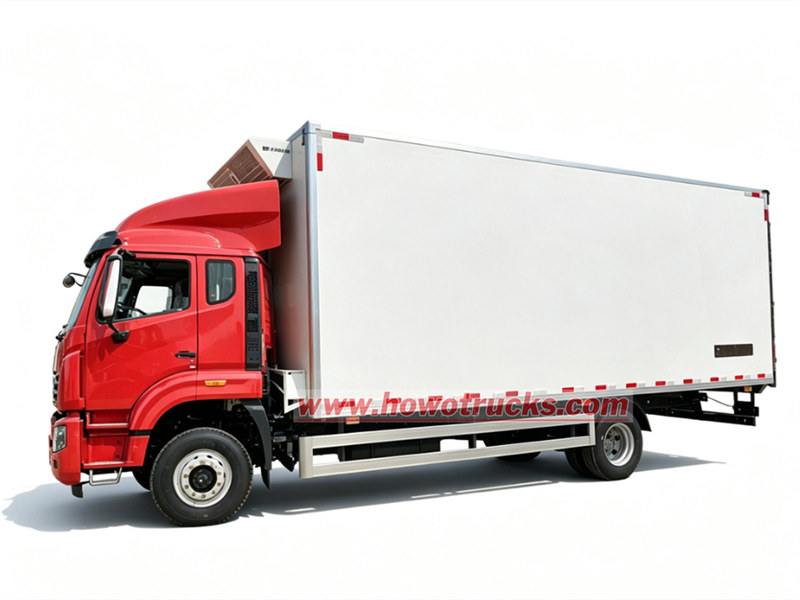

HOWO M7 10tons freezer van



HOWO M7 10tons Freezer Van Truck

Vehicle Model

CSC51803GXQ





Basic Information

Drive Type

4x2

Vehicle Dimensions

8300x2500x3150 mm

Wheelbase

4600 mm

Tire model

10.00R20

Maximum Speed

95 km/h

Curb Weight

8600 kg

Gross Vehicle Weight

18000 kg





Engine Parameters

Engine Model

YC6J220-331

Maximum Horsepower

220HP

Displacement

6.49L

Emission Standard

Euro 3

Fuel Type

Diesel













Cooling performance

Cargo Body Size

5300*2450*2500

Panel Material

FRP + PU Foam + FRP 105mm

Panel Structure

All Closed Sandwich

Rear Door Type

Full Size Double Opening Rear Door

Flooring

Antiskid and abrasion resistant

Refrigeration Unit

KX 850

Body Space Temp

-15 degree~ +20 degree

Painting

Two primers, and one final paint coating

Color & LOGO

According to wish





Optional Equipment

1, Refrigeration brand: KAIXUE, Carrier, Thermoking, DAIKIN  (with any brand)

2, Rear vision camera

3, Aluminium flooring, Hanging system

4, Optional Dual temperature, multi compartment

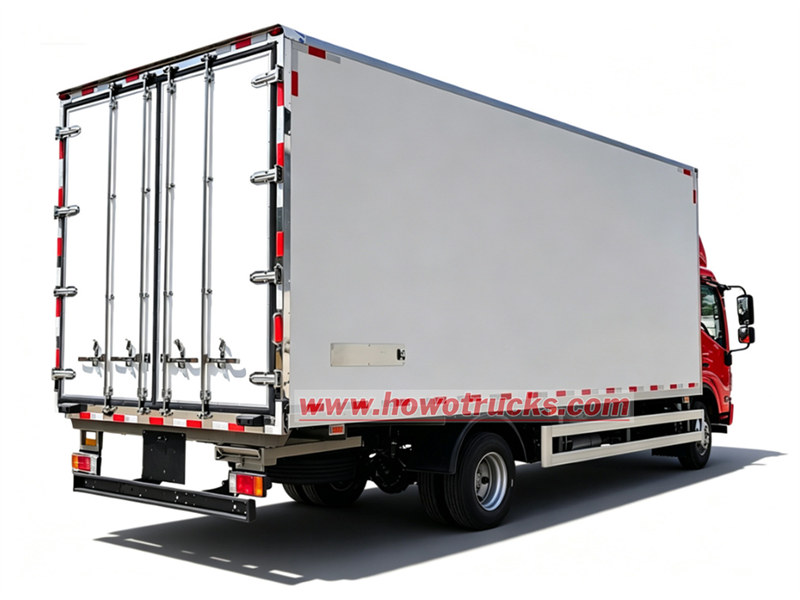

HOWO M7 10 tons mobile refrigerator truck



Ⅲ.Van Box for HOWO M7 Freezer Truck «««



High-Quality Materials:

--- Inner and outer skins are constructed of high-quality fiberglass reinforced plastic (FRP) or pre-coated aluminum panels, offering exceptional corrosion, rust, and weather resistance.

--- The core material is fluorine-free, environmentally friendly, low-K (low thermal conductivity) polyurethane foam, injected through high-pressure foaming to achieve uniform density and excellent thermal insulation.



Howo freezer van truck



Sandwich Panel Bonding:

--- A high-strength adhesive combined with mechanical pressing is used, rather than simple screw fastening.

--- The panels are securely connected and sealed, eliminating thermal bridges and ensuring the overall thermal insulation performance of the body.

--- High-strength alloy corner guards are installed at the four corners of the body to enhance overall structural integrity.



Howo freezer van truck



Floor Structure:

--- A 3-5 cm high-strength profile (such as aluminum) is used as the frame, filled with insulation material.

--- The upper surface is clad with non-slip, corrosion-resistant aluminum patterned plate or composite material, designed to withstand the impact and wear of forklift operations and heavy cargo.



Howo freezer van truck





Ⅳ.Refrigeration Unit for HOWO M7 Freezer Van «««



This HOWO M7 10‑ton freezer van is fitted with a self‑contained refrigeration unit, which operates independently of the truck’s main engine. It maintains consistent cooling even when the vehicle is idling, stopped for loading‑unloading, or parked for extended periods, effectively preventing cold‑chain breakage.

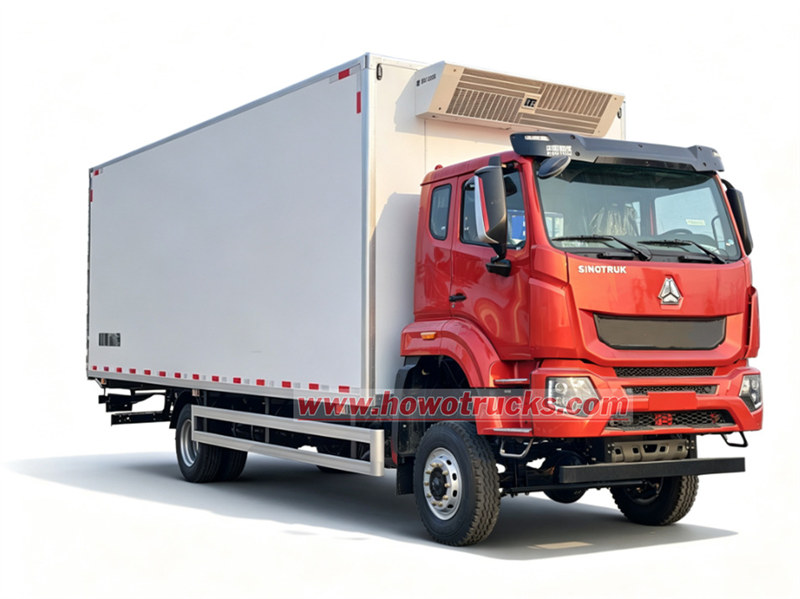

HOWO M7 freezer van truck



Howo freezer van truck



HOWO M7 freezer van truck

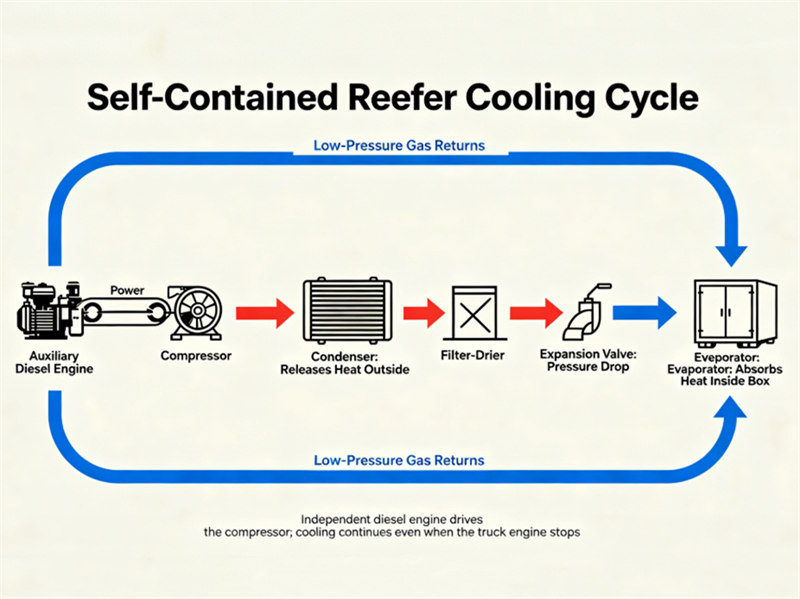

The unit runs on a closed refrigerant circulation loop. Its built‑in auxiliary diesel engine drives the compressor, compressing low‑pressure, low‑temperature refrigerant gas into high‑pressure, high‑temperature gas. The hot gas flows to the condenser to dissipate heat out of the cargo box. After passing through the filter‑drier and expansion valve, the refrigerant enters the evaporator inside the van, where it absorbs heat and rapidly lowers the box temperature. The vaporized refrigerant then returns to the compressor to start the next cooling cycle.



Howo freezer van truck



Beyond basic cooling performance, this self‑powered system delivers continuous temperature control, fast cool‑down and reliable heat preservation. It keeps frozen food, fresh produce, pharmaceuticals and other temperature‑sensitive cargo at ideal conditions throughout the whole transit, no matter how complex the transport conditions are.



HOWO M7 freezer van truck



Advantage Feature:

Powerful Heat Exchange Capacity: Advanced condenser and evaporator design with optimized fin structure ensures high heat dissipation efficiency and minimizes cooling loss even at high temperatures (above 45°C).



All-Area Environmental Adaptability: Key components (compressor, controller, sensors) undergo rigorous high and low temperature, vibration, and salt spray testing to ensure long-term stable operation in extreme climates and complex road conditions.







Howo freezer van truck



♦ Intelligent Fault Diagnosis and Early Warning: Equipped with a comprehensive self-diagnostic system, it provides early warnings of potential faults (such as filter blockage or sensor malfunction) rather than reactive alarms.



Howo freezer van truck



Ⅴ.Advantage for HOWO M7 Freezer Van «««

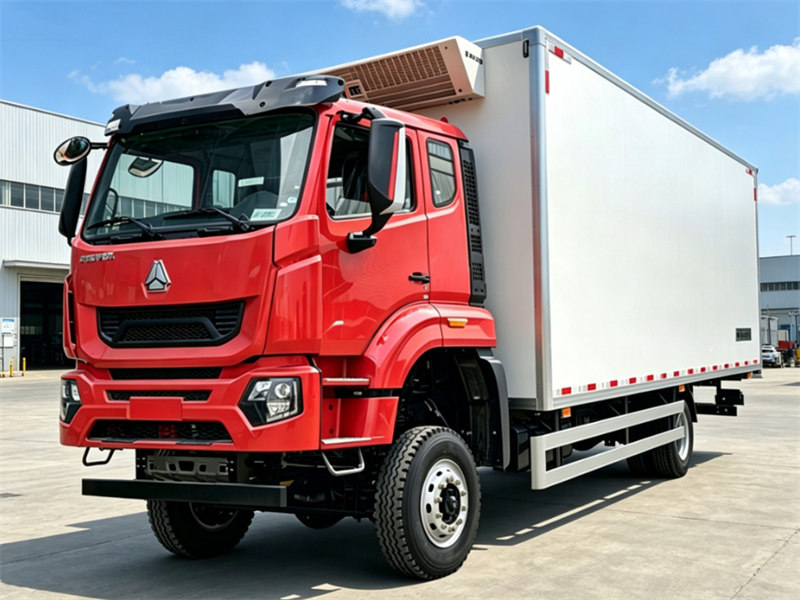

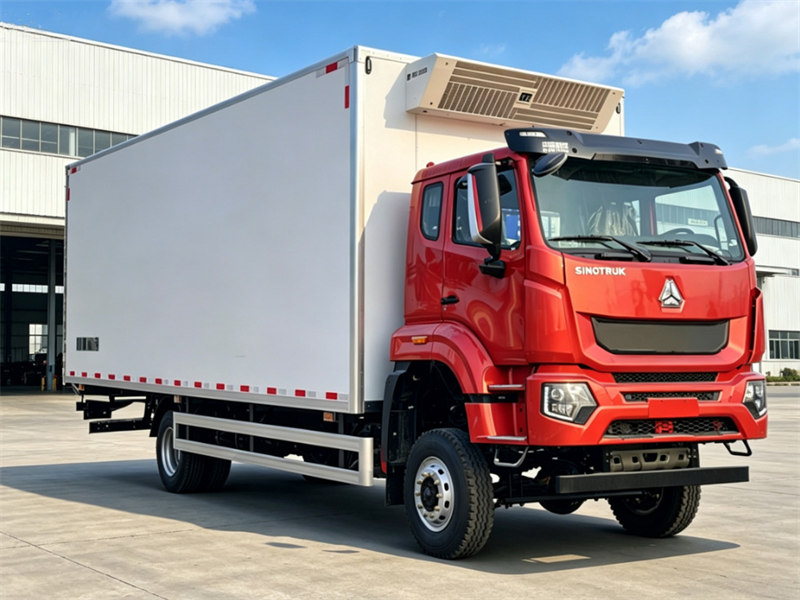

HOWO M7 10tons freezer van truck

1. Reliable Chassis & Powertrain

4×2 heavyduty HOWO M7 chassis, 220HP Yuchai engine, delivers steady power for longdistance coldchain transportation

Reasonable wheelbase and loadbearing design, meets 18ton GVW requirement, adapts to various road conditions

Mature chassis accessories, easy spareparts procurement and low maintenance cost



HOWO M7 10tons freezer van truck

2. High Performance Insulated Cargo Body & Refrigeration System

105 mm closed sandwich FRP PU panels, outstanding heat insulation performance to reduce energy consumption

KX 850 refrigeration unit, temperature adjustable from  15℃ to +20℃, fits multiple cold chain goods

Wear resistant floor and full size double rear doors; supports optional multi compartment, famous brand refrigeration units and auxiliary configurations






● China best freezer van truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!

»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO M7 10tons freezer van truck



HOWO M7 10tons freezer van truck
